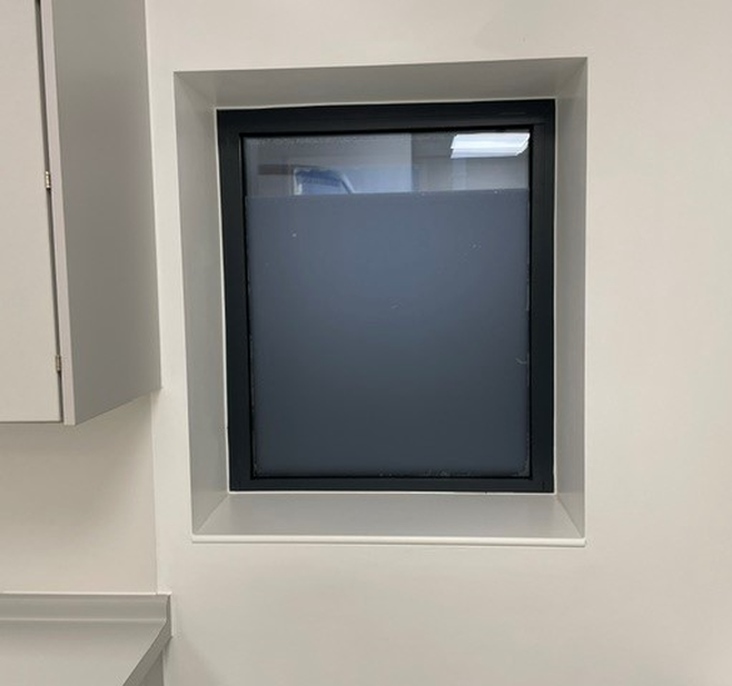

Fire Rated Windows
High-Performance Fire Rated Aluminium Window Systems
Key system characteristics include:
- Fire resistance rating of EI30
- Actuator operated closing mechanism linked to fire detection systems
- Aluminium framed system construction
- Available in standard RAL and premium finishes
- Acoustic glass options available
- Certified to EN 13501-2
- Based on Aluprof and Schüco system platforms
| Technical Specification | System |
|---|---|
| Frame Depth | 77mm |
| Casement depth | 86mm |
| Glazing thickness | Frame: 13-61mm, Casement: 22-70mm |
| Width of door leaf profiles | 130kg |
| Technical Parameters | System |
|---|---|
| Air leakage | class 4, EN 12207 |
| Water resistance | class E 1500, EN 12208 |
| Wind resistance | class C5, EN 12210 |
| Thermal insulation | U, od 1.07 W/(m2k), U_ from 0.86 W/(m2k)* |
| Fire Resistance Rating | Class EI30 |
*Based on 2000x1100mm window with triple glazing, warm spacer and EI30 fire resisting glass.

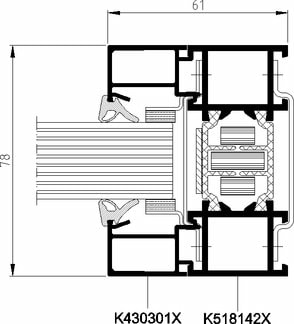

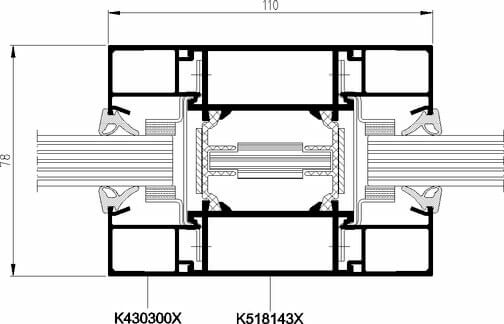

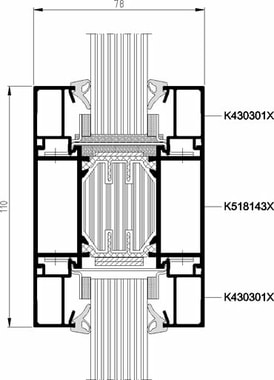

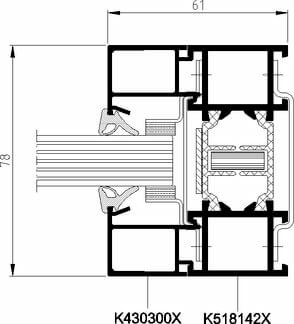

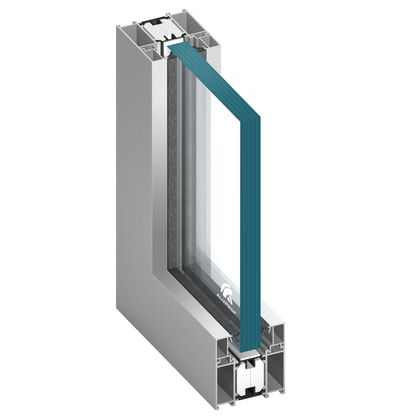

Key system characteristics include:
- Fire resistance ratings from EI30 to EI120
- Aluminium framed fixed glazing systems
- Available in standard RAL and premium finishes
- Acoustic glass options available
- Certified to EN 13501-2
- Classified as non-fire spreading (NRO)
- Based on MB-78EI and MB-118EI systems
| Technical Specification | System |
|---|---|
| Casement depth | 78 – 118mm |
| Glazing thickness | Up to 30 min: 16mm to 41mm, Up to 90 min: 32mm – 50mm, Up to 120 min: 31-84mm |
| Width of a double door | up to 2125mm |
| Technical Parameters | System |
|---|---|
| Air leakage | class 4, EN 12207 |
| Water resistance | class e 1500, EN 12208 |
